Oil Transformers

up to 15 MVA, 33 KV
Egytrafo Product Oil Transformers

Oil Transformers

  • EGYTRAFO Grp.  produces wide range of oil transformers up to 15 MVA, 33KV .
  • Suitable for indoor and outdoor installation and ambient temperatures up to 45oC
  • EGYTRAFO Grp. Transformers are designed to deliver maximum continuous power without exceeding temperature rise limit and withstand overloading according to IEC – 60354
  • Other operating condition and customized solutions can be implemented on request



  • Types of Oil immersed transformer:

A- Standard distribution transformers: Ratings from 25KVA to 3500 KVA with vector group Dyn 11

  • Pole mounted transformers
  • Pad mounted transformers
  • Step – up transformers
  • Step – down transformers

B – Special Design Transformers: High rating up to 15000KVA, 33KV.

  • Various number of taps for instance 5,7,9,12,,…….21……etc.
  • Dual voltage transformers for both primary and secondary side
  • Testing transformers according to customer ratings and data
  • Isolating transformers according to customer ratings and data
  • Any connection group can be fulfilled on request
  • EGYTRAFO Grp. can design new solutions for Oil & Gas, Utilities and Industrial sectors according to their existing networks and requirements.

C – Earthing Transformers /   Zigzag:

D – Auto-Transformers: up to 600 A, up to 22 KV and more than 5 taping positions on request.

– All products comply to IEC Standards

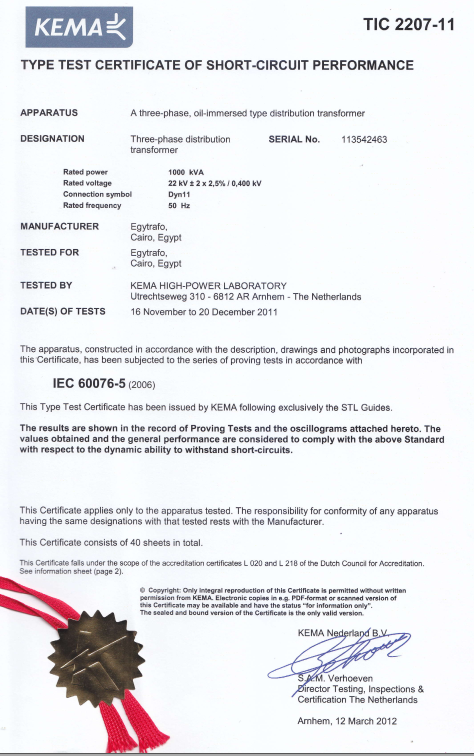

– KEMA Certified
